The 'Must Have' Remote Measurement Solution

GUARDIAN® from Plexus Innovation, is a well proven, IoT remote measurement solution that enables significant

business improvements.


It consists of a combination easy to use hardware devices and Dashboard, where the data is stored and managed.

All reports and alerts are user configurable and provide good practice for water services and refrigeration compliance.


The GUARDIAN® solution offers everything needed to monitor and record the condition of a range of business critical processes and assets including detection of many issues not otherwise possible, across many sectors such as:



Care

Social Housing

Hospitality

Pharmacy

Education

Healthcare

Screenshot 2021-08-14 at 11.49.58.png

MEASURES AND MONITORS

GUARDIAN® measures and monitors temperature, bringing business improvements to help customers meet their individual challenges.

Screenshot 2021-08-14 at 13.10.03.png

ENHANCES BUSINESS COMPLIANCE

Monitoring real-time data, enhancing business compliance, while reducing risk, water waste, energy consumption and also relieving pressure on human time.

Screenshot 2021-08-14 at 13.18.09.png

PREVENTS A CRISIS

GUARDIAN® identifies taps left running, water leaks, water heaters under stress and failing assets, enabling early intervention to be taken before a situation becomes a crisis.

Screenshot 2021-08-14 at 11.48.23.png

COLD STORAGE REASSURANCE

GUARDIAN® monitors fridge temperature, providing reassurance in the storage of medication

and food.


FREE DEMONSTRATION

Plexus Innovation is currently offering free demonstrations of GUARDIAN®. Get in touch today to book yours!

Screenshot 2021-08-14 at 11.46.16.png

REDUCES RISK

GUARDIAN® helps to protect staff, residents and guests from risk of legionella and also reduces the risk of injury and scalding.

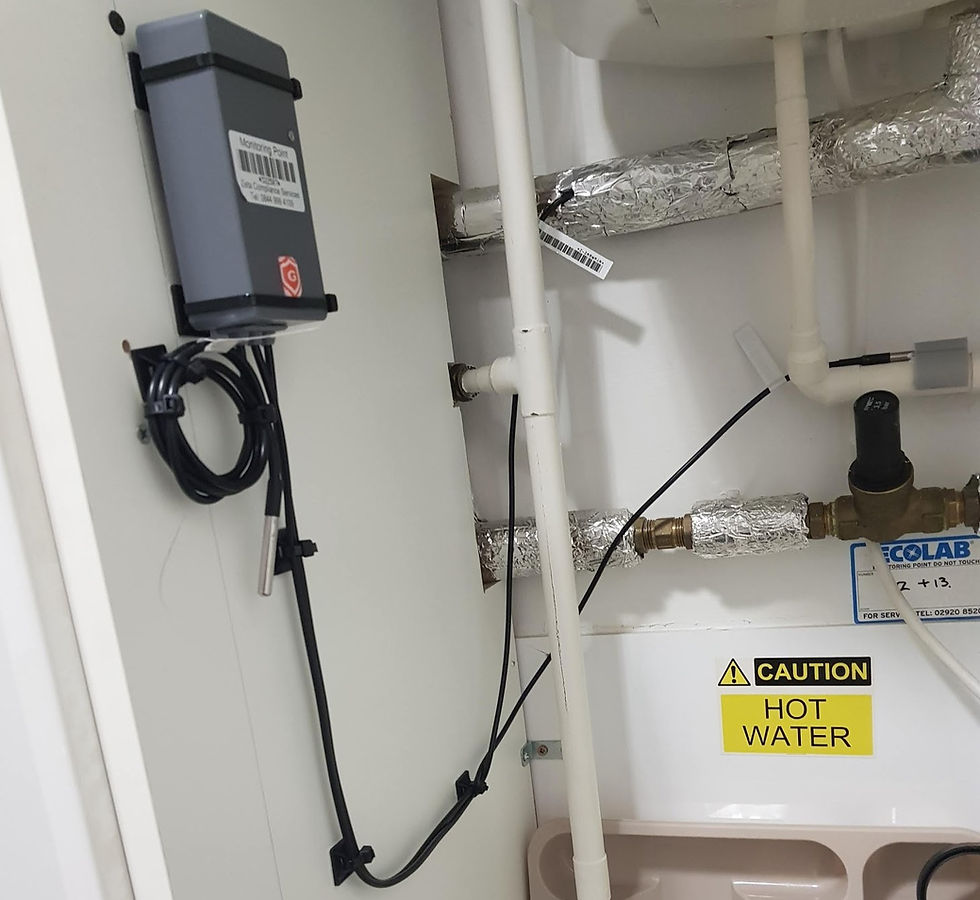

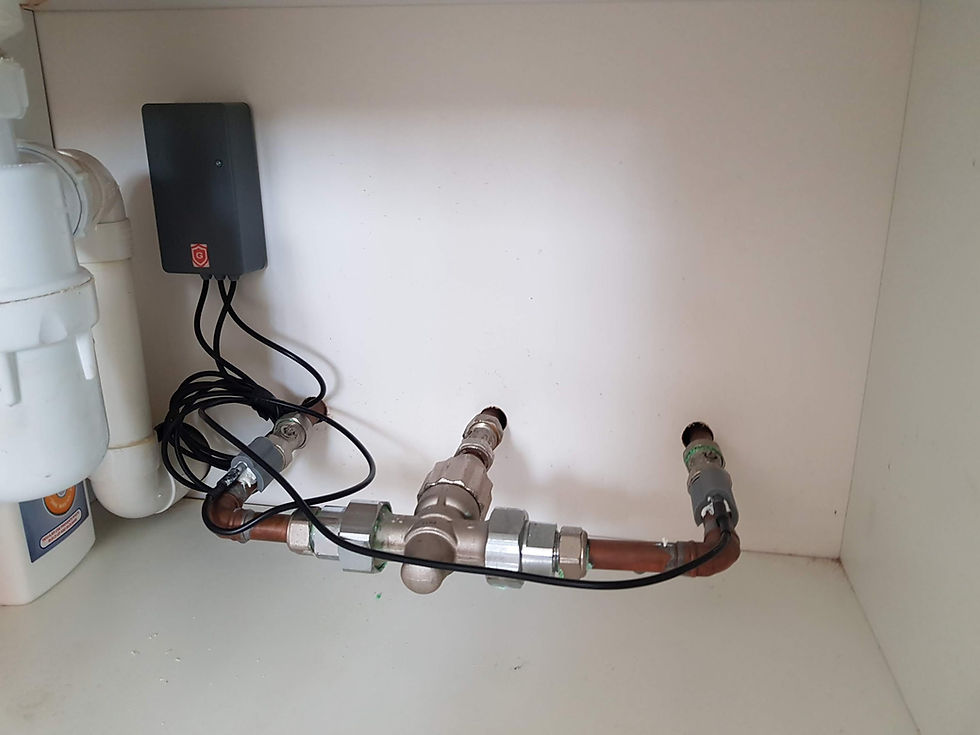

GUARDIAN® AT WORK

To play, press and hold the enter key. To stop, release the enter key.

press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom
press to zoom

BESPOKE REPORTING AND ALERTS

Screenshot 2021-09-01 at 13.39_edited
Screenshot 2021-09-01 at 13.38_edited
Screenshot 2021-09-01 at 13.36_edited
Screenshot 2021-09-01 at 13.35_edited
Screenshot 2021-09-01 at 13.30_edited
Screenshot 2021-09-01 at 13.32_edited

TECHNICAL INFORMATION

HARDWARE PROVISION

GUARDIAN hardware is a combination of hub and nodes.

Hub is mains powered and can communicate with up to 50 nodes when in range.

All nodes are supplied with three

temperature sensors.

Nodes are battery powered, with lifetime in excess of 3 years in normal operation.

Nodes have a survey mode to enable user to check range and function within each facility prior to installation.

Communication between nodes and hub is via LoRa private network.

Node system can be expanded at any time  and will communicate via existing hubs.

Nodes will communicate via any in

range hub.

DATA MANAGEMENT

Data is measured by nodes once per minute.

Data is transferred four times per hour to the cloud based Plexus Innovation portal securely via GSM 2G/3G/4G modem.

Data feeds include max/min temperatures and event frequency within a user defined period.



Data can be viewed either at the Plexus Innovation portal via secure user sign on, or via third party platform or users existing BMS.



Live data is available via the Plexus Innovation portal for 6 months and archived for seven years to ensure compliance audit trail.



Can handle and process data from nodes with a mixture of end applications (temperature, pressure and light) simultaneously.

Mains powered.

Option for solar PV and battery if used in an

off-grid location.

TRAINING AND SUPPORT

All users are provided with access to Plexus Innovation portal.



Full user training is provided by the knowledgable team at Plexus Innovation.

Training can be in-house at user site, remote via video conferencing or via our easy to follow 'how-to' videos.

Once trained, users will typically survey sites and install hardware independently.

If preferred, Plexus Innovation offer installation support which ranges from complete site set up to remote video consultation during user install process.

Several user queries are answered in the FAQ section of the site, however the Plexus Innovation team enjoy interaction with users and is always happy to help with any

user issues.
